Alarm Output: 1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC
Power Supply: 12 VDC/PoE+ (802.3at)
Dual Power Backup: Yes
Protection: IP67
Net Weight: 0.94 kg (2.07 lb)
Gross Weight: 1.17 kg (2.58 lb)
Series Overview Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Acupick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Functions

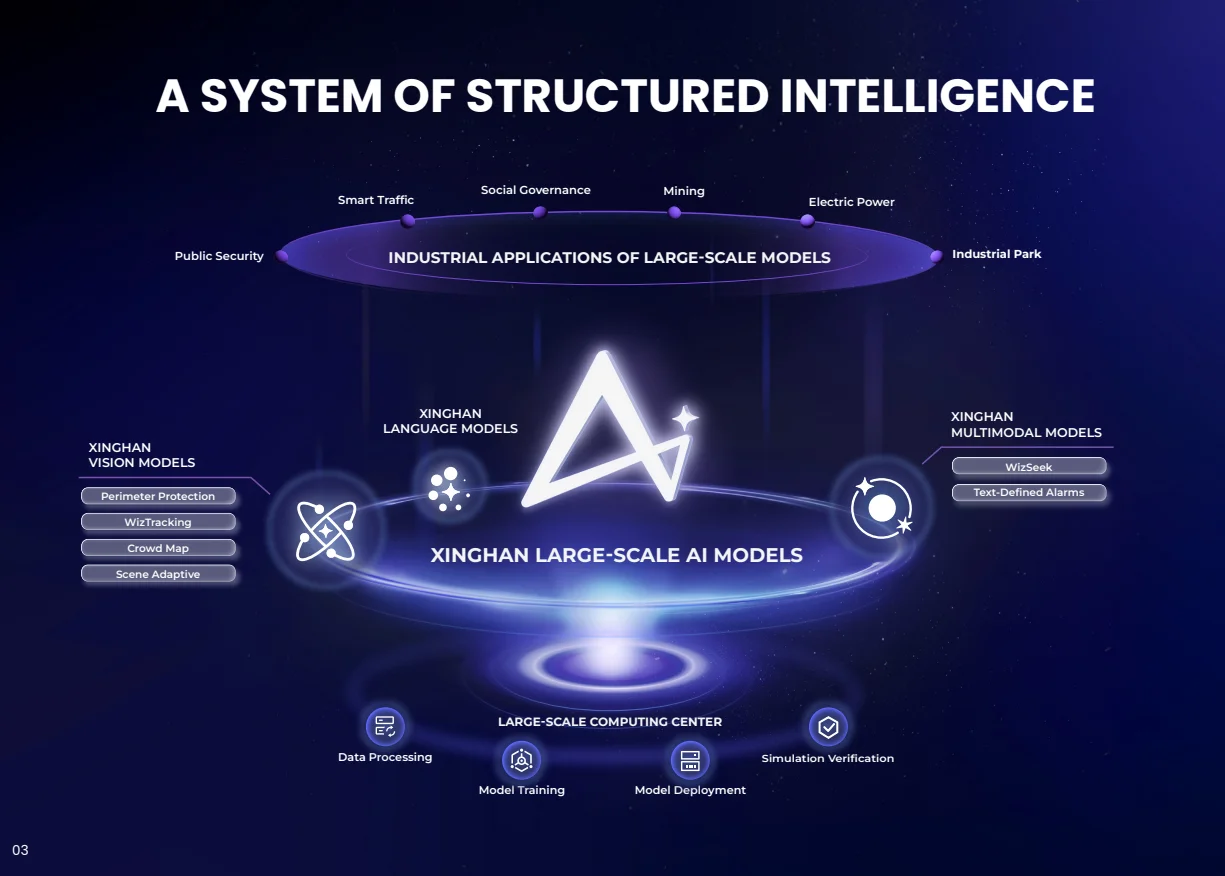

Xinghan Large-Scale AI Models-Vision Xinghan Large-Scale AI Models-Vision seamlessly expands the storage and operational capacity of algorithmic models through the powerful integration of edge AI model algorithms and NPU computing power. Engineered with a lightweight transformer architecture and enhanced by model distillation and quantization techniques, it optimizes the computing power consumption of ViT operators. This enables the system to collaborate on multiple tasks simultaneously through joint inference between small and large models optimized for edge devices.
WizColor Technology Dahua WizColor Technology seamlessly combines with the powerful AI-ISP, large pixel size sensor and large aperture in cameras. This unique integration enables cameras to effortlessly capture high-quality images with vibrant colors during nighttime scenarios, ensuring fine details are preserved and minimizing motion blur. Unlike traditional self-illuminating cameras, Dahua WizColor Technology maximizes the utilization of weak light sources, such as moonlight and city lights reflected in the sky, delivering captivating full-color images of the entire scene. It also ensures that monitoring distances are not compromised at night due to limited illumination ranges, facilitating full-color image capture even over long distances.
Siren and Light Active Deterrence Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
AI-ISP With AI ISP technology, the camera is able to easily adapt to scenes,producing high quality images that reveal the fine details of targets.

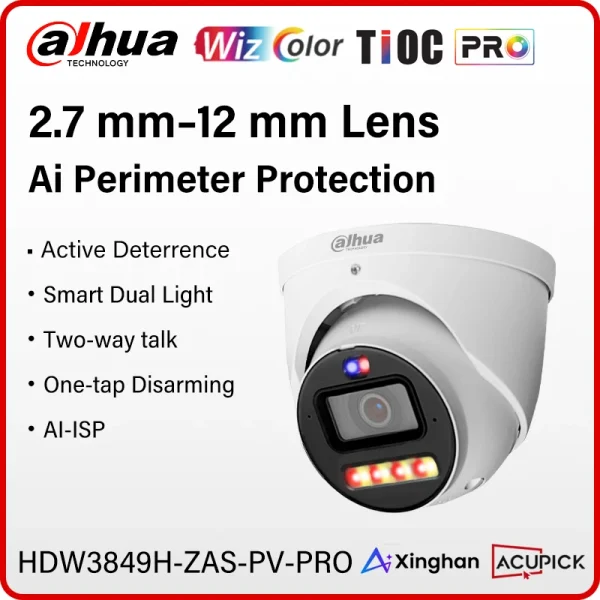

IPC-HDW3849H-ZAS-PV-PRO
8MP WizColor TiOC PRO Vari-focal Eyeball WizSense Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
Camera
Image Sensor
1/1.8" CMOS
Max. Resolution
3840 (H) × 2160 (V)
ROM
256 MB
RAM
1 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.001 lux@F1.2 (Color, 30 IRE)
0.0005 lux@F1.2 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control
Auto;Manual;Zoomprio
Illuminator Number
4 (Multi-core (IR + warm) light)
Angle Adjustment
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type
Motorized vari-focal
Lens Mount
φ16
Focal Length
2.7 mm–12 mm
Max. Aperture
F1.2
Field of View
H: 112°–48°
V: 58°–27°
D: 137°–55°
Iris Control
Fixed
Close Focus Distance
W: 1.75 m (5.74 ft)
T: 5.21 m (17.09 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
87.6 m
(287.40 ft)
35.0 m
(114.83 ft)
17.5 m
(57.41 ft)
8.8 m
(28.87 ft)
T
186.6 m
(612.20 ft)
74.6 m
(244.75 ft)
37.3 m
(122.38 ft)
18.7 m
(61.36ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence

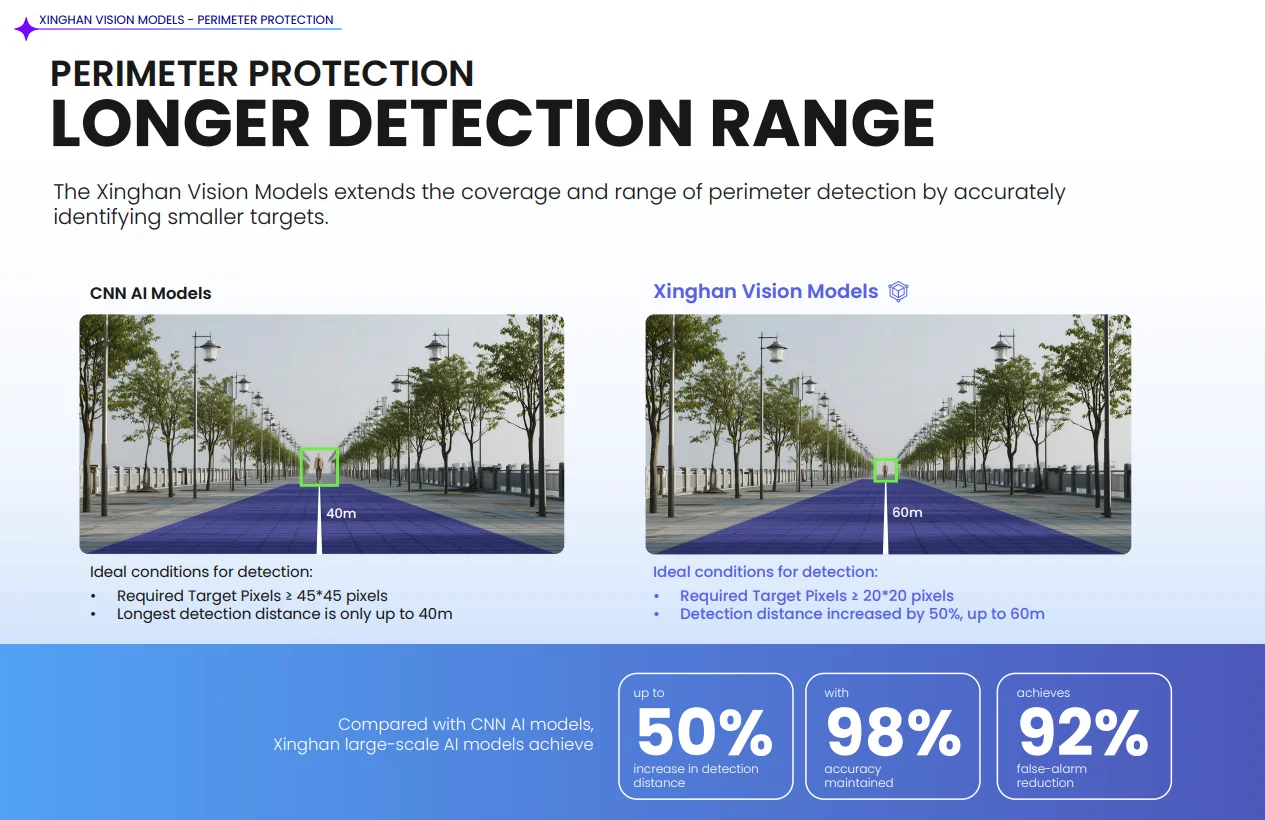

IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection(Full Image)
Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD
SMD 4.0
AcuPick
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
AI Coding
AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate
Main stream: 3840 × 2160@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1 fps–25/30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity.
